Configured specifically for testing boilers and burners in industrial and commercial application.

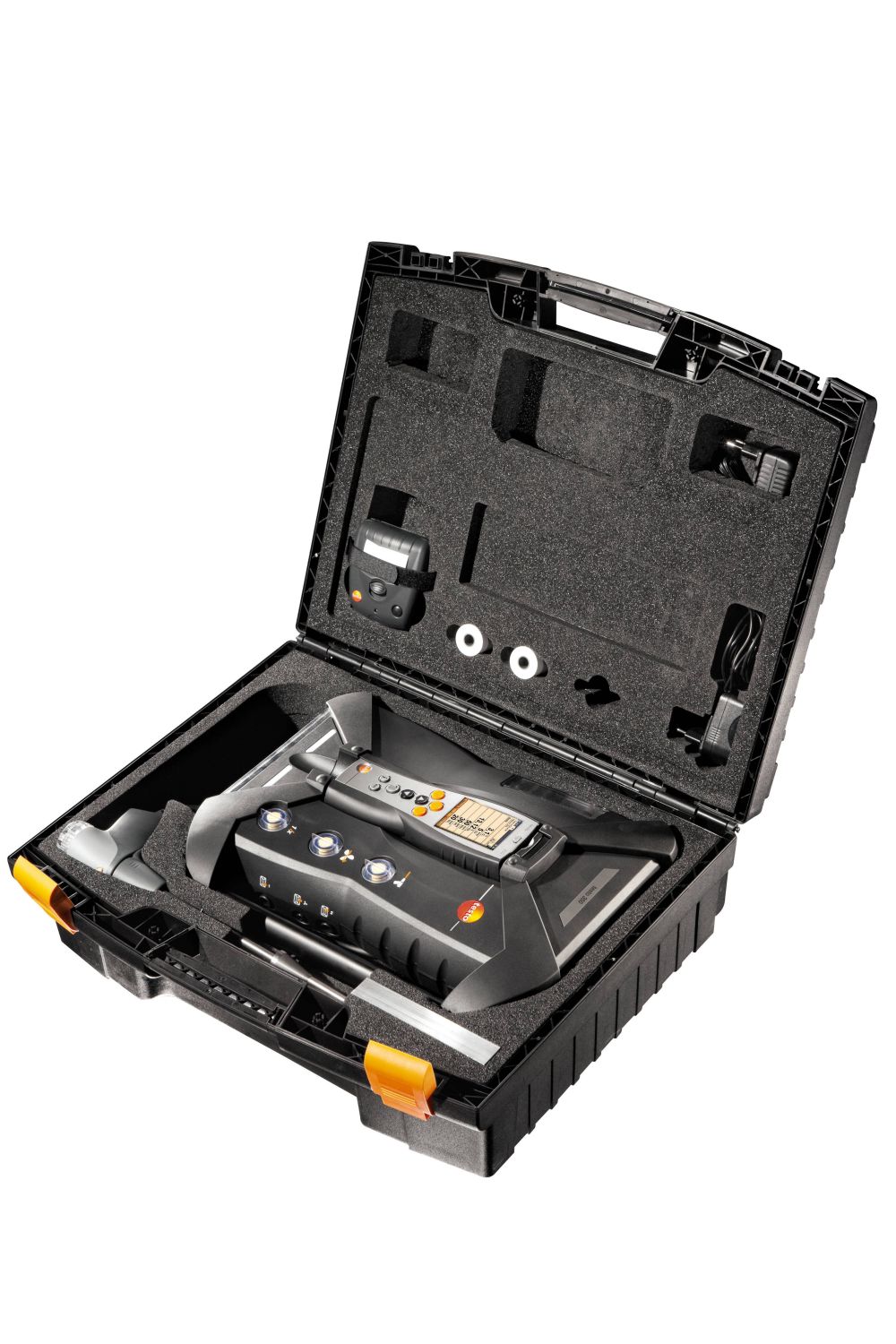

This 350 Boiler and Burner Kit will allow you to monitor the combustion parameters and optimize fuel consumption or tune your pollution control systems.
Optimize fuel efficiency and reduce emissions
Identify and troubleshoot bad burners, inlet air, or fuel delivery problems
Find O2 leaks in the flue gas paths or back pass
Characterize and troubleshoot air infiltration problems
Tune ammonia injection systems using NOx measurements
Perform emission monitoring for state and federal agencies
Is one way is used to control the analyzer and display the measurements. Turn it on and select the “Burner” icon. The analyzer will automatically guide you through the measurement. Save each reading or let the automatic program take over and data log automatically. Use one of the default programs, use your own program, or use the EPA CTM-034 default program for hands-free testing. The Control Unit and analyzer box include wireless Bluetooth connectivity up to about 330 feet distance. The magnets on the Control Unit allow you to see the readings at the combustion controls via USB to the laptop at a safer and more convenient location.
The Bluetooth connection allows the analyzer to be close to the stack and displaying the combustion parameter up to 330 feet away. By being close, shorter sample lines are used. This results in response times faster than any other portable analyzer in the market. It allows you to make accurate adjustments when the combustion changes with essentially no time lag. It saves you time, money and the hassle of carrying and cleaning long sample lines.
Control Unit has wireless Bluetooth control (to 330 feet). It displays the combustion parameters at the control panel, increases response time by reducing sample hose length and gets the job done faster.
The variable output sample pump adjusts to in-stack conditions (high draft or high particulate loading)
CO sensor protection - when a high concentration is detected, the CO purge will activate and the other sensors continue to measure, therefore no reason to stop testing or tuning.
Integrated gas conditioning removes condensate from sample which will protect sensors and delivers more accurate dry basis data as required by EPA.
Firmware testo 350 - Control Unit (v1.25, BIN, 12.226 KB)Firmware Update for testo 350 Control Unit (0563 3511). *Note: If using Windows 8 or 10, download Bootloader Kit, and instructions from links below.
Firmware testo 350 - Analyzer Box (v1.25, BIN, 1.8 MB)Firmware Update for testo 350 Analyzer Box (0563 3510). *Note: If using Windows 8 or 10, download Bootloader Kit, and instructions from links below.
**READ FIRST** Testo 350 Firmware Update Addendum (application/pdf, 106 KB)
Update-Kit / Bootloader (V1.22, EXE, 381 KB)Download this file if you are using Microsoft Windows 8 or 10. Firmware cannot be installed if this Update Kit file is not activated.
This applies to Testo models 320, 330, 330i, 350) See Installation Instructions PDF prior to installation.
