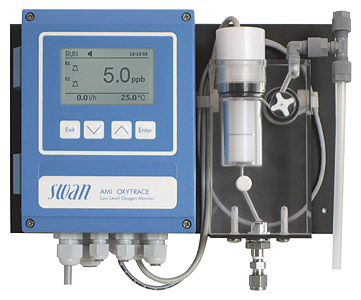

SWAN Monitor AMI Oxytrace compact version AC

High precision monitor with three electrode Oxytrace G sensor for the continuous measurement of trace levels of dissolved oxygen in high purity water.
Mounted on a small panel (width: 280 mm, height: 180 mm

Request Quote /
Ask Questions

  • Product Features
  • Technical Specs
  • Range: 0-20 ppm or 0-200 % saturation (at 25°C).
  • Automatic air pressure and temperature compensation.
  • Short rinse-down time due to integrated guard.
  • Factory tested, ready for use

Datasheet Monitor AMI Oxytrace QV-Flow.pdf (329kB)

Complete system mounted on stainless steel mounting panel.

Transmitter in aluminum housing (IP 66) with 2 signal outputs for measuring value or for continuous control, 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact.

Flow cell QV-Flow PMMA OTG made of acrylic glass with needle valve and digital sample flow meter on mounting angle made of stainless steel.

  • Measuring range with Swansensor OXYTRACE G (at 25 °C):
    - 0 - 20.0 ppm O2 or
    - 0 - 200% saturation
  • Process connections:
    - Inlet: Swagelok ¼" tube adapter
    - Outlet: G ½” adapter for flexible tube Ø 20 x 15 mm, pressure-free
  • Power Supply
    -100-240 VAC (±10%)
    -10-36 VDC
