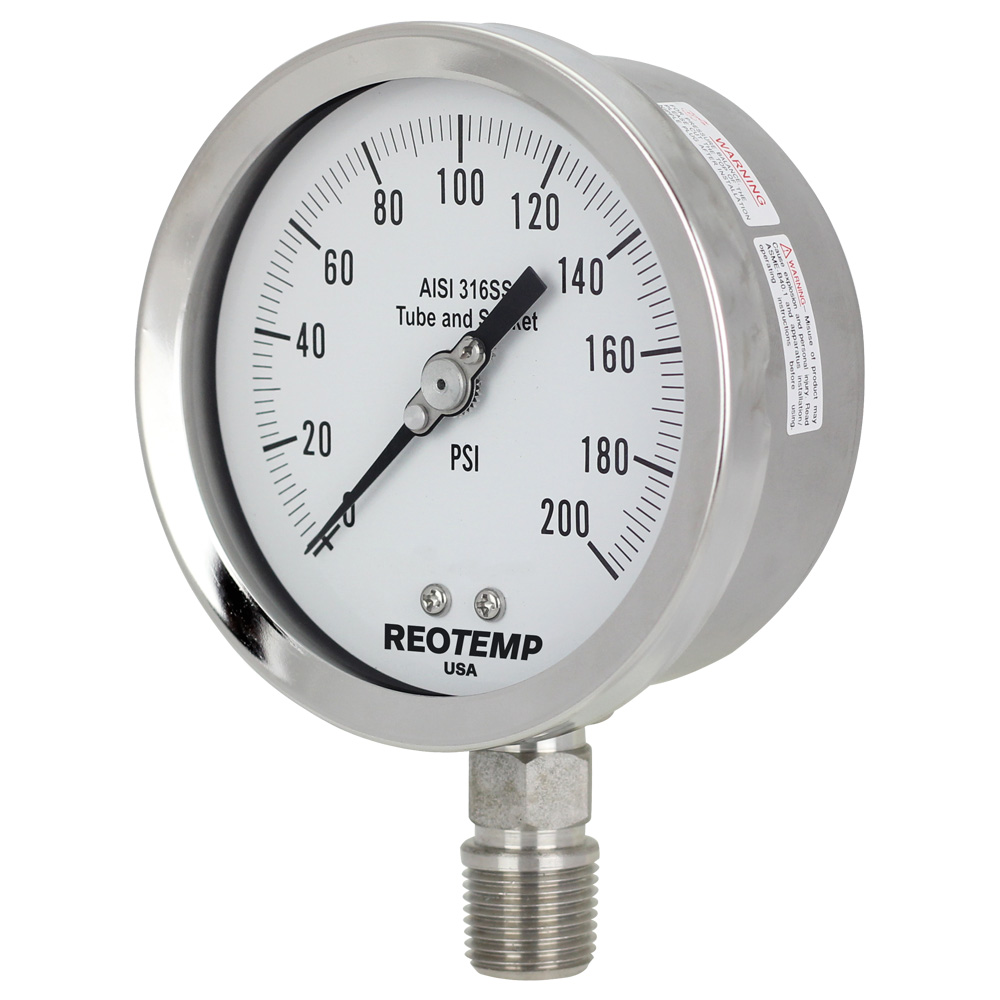

REOTEMP Heavy-Duty Repairable Stainless Gauge (PR40/60)

REOTEMP’s Series PR40/60 gauge offers rugged, all-welded stainless steel construction ideal for heavy-duty industrial applications. The stainless steel case, tube and socket are welded together for superior case sealing and gauge integrity. The twist-off bayonet ring offers easy-access for field repair and calibration services. Liquid filling (at the factory or in the field) is recommened for applications involving vibration. For high-corrosive, high-temp, or severe service applications, a diaphragm seal is recommended.

Request Quote /
Ask Questions

  • All-Welded Stainless Steel Construction
  • Removable Bayonet Ring with Adjustable Pointer
  • Field Fillable Case, NEMA4/IP65
  • Rugged, Long-Lasting Design
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant

Download Datasheet

  • Construction Materials

Non Wetted
Case: 304SS
Ring: 304SS, Twist-Off Bayonet
Dial: White Aluminum, Black Letters

Wetted
Tube: 316LSS
Socket: 316SS

Case-to-Socket
Welded

Lens
Tempered Safety Glass (std), Plastic, or Laminated Safety Glass

  • Temperature Limits

Ambient
-40°F to 150°F
Process
-40°F to 250°F
Process When Assembled with a Diaphragm Seal
Direct Mount: -60°F to 400°F
Remote Mount or Cooling Tower: -100°F to 750°F

  • Accuracy: 1%, ASME Grade 1A (10K to 20K ; 2% Upscale, 4% Downscale)
  • Fillable: Yes
  • Restrictor Screw: Yes
  • Max Working Pressure: Stable = 100%, Momentary = 130% of scale
  • Weight: 4” = 1.3 lbs (2.0 lbs filled)
