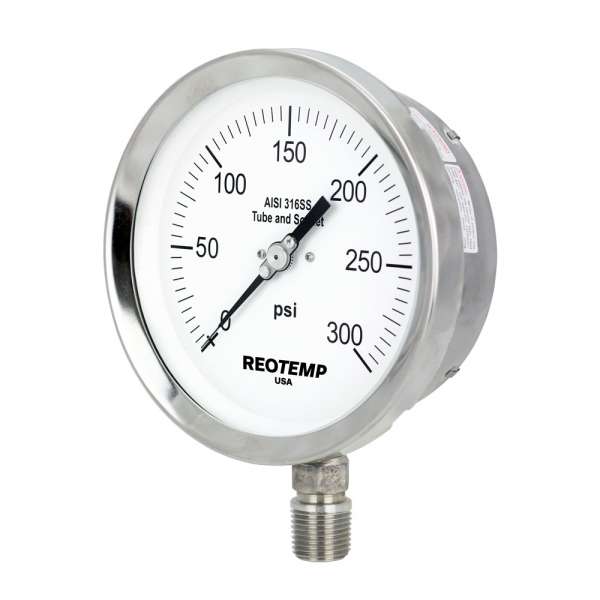

REOTEMP 4.5″ Industrial Process Gauge (PT45T)

REOTEMP’s Series PT45T process gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. The solid front and blowout back provides a high degree of user safety.

Request Quote /
Ask Questions

  • Product Features
  • Technical Specs
  • Solid Front/Blowout Back Safety Case
  • All Stainless Steel Internal Parts
  • Internal Overload and Underload Stops (std)
  • Field Fillable Case
  • Micro-Adjustable Pointer with Floating Zero
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant

Download Data Sheet

Download PT45 Tech Brief



  • Accuracy: ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
  • Ambient Limits: -40°F/150°F
  • Process Limits: -40°F/250°F
  • Process Limits with Diaphragm Seal: -60°F/400°F (Direct Mount)* -110°F/750°F (Remote Mount or Cooling Tower)* *Exact limits depend on diaphragm seal and fill fluids.
  • Wetted Material: Tube: 316SS Seamless, Socket: 316SS
  • Lens: Tempered Safety Glass (Standard), Plastic or Laminated Safety Glass
  • Other Materials: Case: Reinforced Thermoplastic (Phenolic) or 316SS, Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet, Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring
  • Fillable: Yes
  • Restrictor Screw: Yes, removable
  • Maximum Working Pressure: Stable = 100%, Momentary = 130% of scale
  • Environmental Protection: NEMA 4X/IP65
  • Weight: Phenolic (Dry) = 2.5 lbs, Phenolic (Filled) = 3.5 lbs, SS (Dry) = 2 lbs, SS (Filled) = 3 lbs
