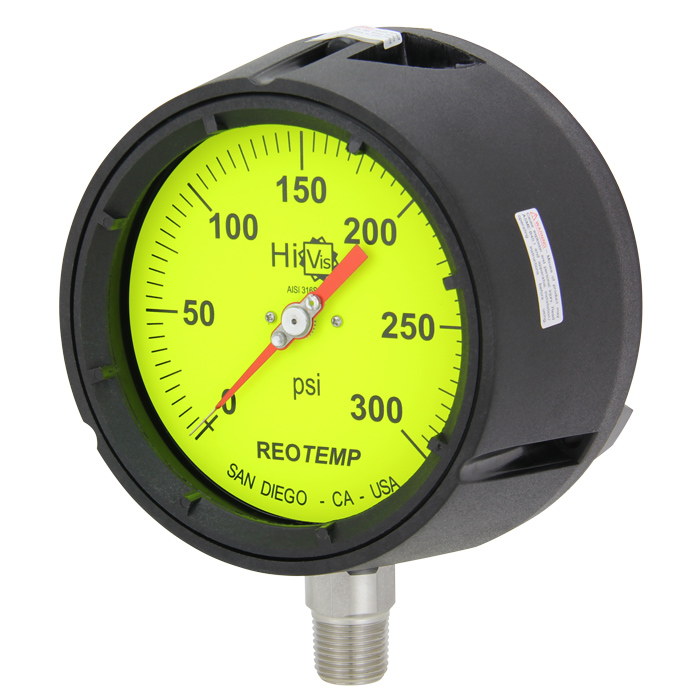

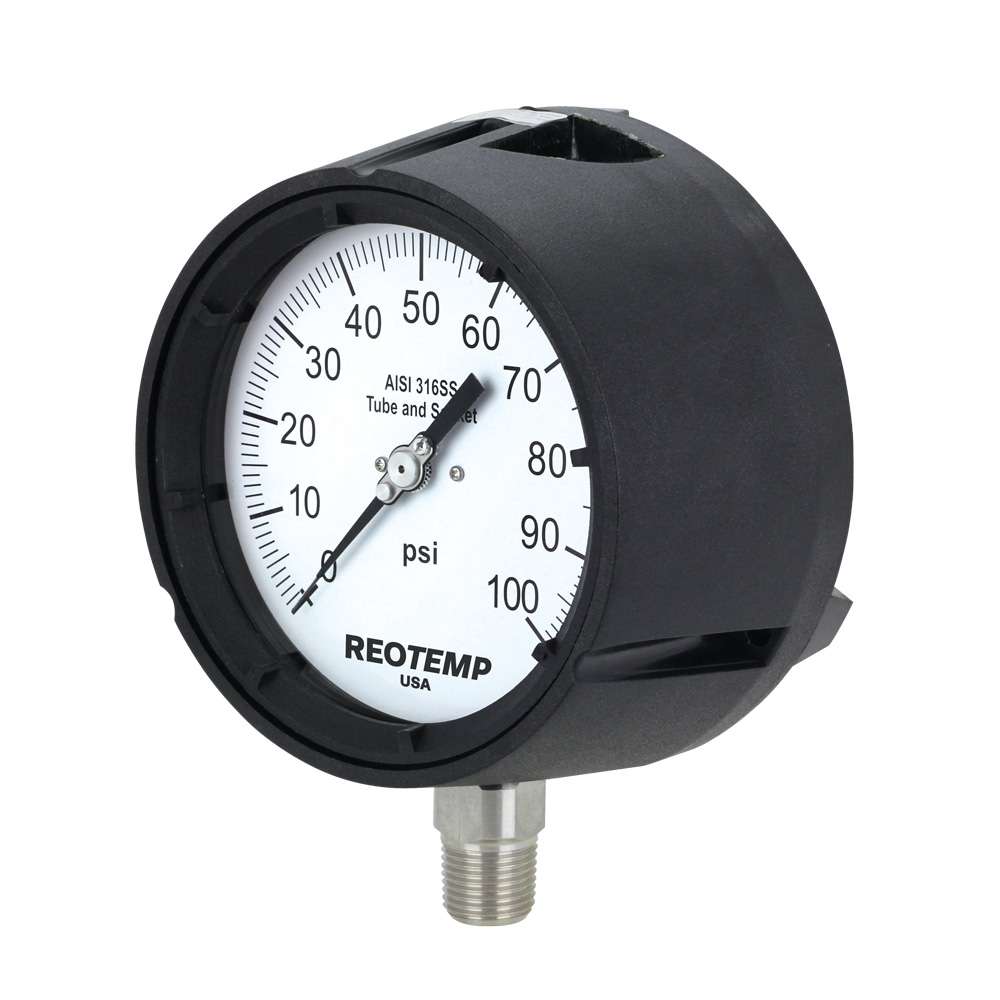

REOTEMP PT45P Series 4.5" Industrial Process Gauge

REOTEMP’s All-Welded Pressure Seal Gauge™ offers superior diaphragm seal safety and performance at an economical price. Combined with a gauge or transmitter, the tamper-resistant all-welded diaphragm seal reduces potential leak points, making it ideal for installations where process integrity and worker safety are paramount. Combined with PulsePlus™ protection, the Series MS8 can potentially triple the life of your gauge or transmitter.

Request Quote /
Ask Questions

  • Product Features
  • Technical Specs
  • Safety Pattern Design
  • Solid Front/Blowout Back Safety Case
  • All Stainless Steel Internal Parts
  • Internal Overload and Underload Stops
  • Field Fillable Case
  • Micro-Adjustable Pointer with Floating Zero
  • ASME B40.100 Design
  • NACE MR-0175 and MR-0103 Compliant

Download Datasheet

Download Tech Brief

Download DampX & PulsePlus Tech Brief



  • Accuracy: ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale)
  • Ambient Limits: -40°F/150°F
  • Process Limits: -40°F/250°F
  • Process Limits with Diaphragm Seal: -60°F/400°F (Direct Mount)* -110°F/750°F (Remote Mount or Cooling Tower)* *Exact limits depend on diaphragm seal and fill fluids.
  • Wetted Materials: Tube: 316SS Seamless, Socket: 316SS
  • Lens: Tempered Safety Glass (Standard), Plastic or Laminated Safety Glass
  • Other Materials: Case: Reinforced Thermoplastic (Phenolic) or 316SS, Ring: Phenolic Turret Twist-Off or SS Twist-Off Bayonet, Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring
  • Fillable: Yes
  • Restrictor Screw: Yes, removable.
  • Maximum Working Pressure: Stable = 100%, Momentary = 130% of scale
  • Environmental Protection: NEMA 4X/IP65
  • Weight: Phenolic (Dry) = 2.5 lbs, Phenolic (Filled) = 3.5 lbs, SS (Dry) = 2 lbs, SS (Filled) = 3 lbs
