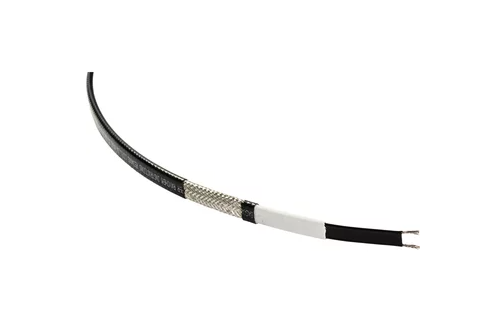

ICESTOP Self-Reg Heat Trace for Roof & Gutters

Raychem IceStop self-regulating trace heating cables provide roof and gutter de-icing, suitable for all standard materials of gutters and drainpipes. Power output is 36 W/m at 0 °C in ice water, 18 W/m at 0 °C in air.

Specifications

Min Installation Temperature: 0 °F
Nominal Thickness: 0.24 in
Nominal Width: 0.54 in
Nominal Cable Weight: 92 lb/ft
Color: Black
Ground Path Type: Braid
Conductor Material: Nickel-Plated Copper

Request Quote /
Ask Questions

Product Features
Technical Specs

Simple to design
Easy to install: cut to length, meter marks, simple fast RayClic connections
Safe and efficient in operation: no overheating, even when crossed, advanced energy saving controls
Reliable during long life: 10 year extended product warranty available, maintenance free
GM-2XT for bitumen roofs

Catalog Number	Item Name	Supply Voltage	Nominal Power Output, In Air @ 32°F, 120V	Nominal Power Output, In Air @ 32°F, 240V	Nominal Power Output, In Ice Water @ 32°F, 120V	Nominal Power Output, In Ice Water @ 32°F, 240V	Outer Jacket Material
832100-000	GM-1X	120 V	6 W/ft		12 W/ft		Modified Polyolefin
900069-000	GM-1XT	120 V	6 W/ft		12 W/ft		Fluoropolymer
092961-000	GM-2XT	208 – 240 V		6 W/ft		12 W/ft	Fluoropolymer
446105-000	GM-2X	208 – 240 V		6 W/ft		12 W/ft	Modified Polyolefin
